Bird1st Etch DX22
Bird1st Etch DX22
Glass that performs and protects
Bird1st Etch glass boasts a visible translucence for high style and visual appeal on façades and curtain walls. Bird1st Etch DX22 features non-directional 5mm dots spaced 2" x 2" apart and tested by the American Bird Conservancy for proven effectiveness.
Etch DX22 is available in larger sizes – 102" x 130", 102" x 144" and 102" x 204" – expanding your aesthetic range.
Advanced technology for optimized protection
Guardian® Bird1st™ Etch pairs the visual deterrent of acid-etched glass on surface 1 with Guardian SunGuard® low-E coatings on surface 2. This allows you to expertly achieve energy performance and the bird-friendly standards your project requires – while also contributing to LEED Innovation Credit for Bird Collision Detterence qualification.
Bird1st Etch DX22
Threat Factor: 15
Non-directional 5mm dots spaced 2" x 2" apart
Bird1st Etch product details and availability

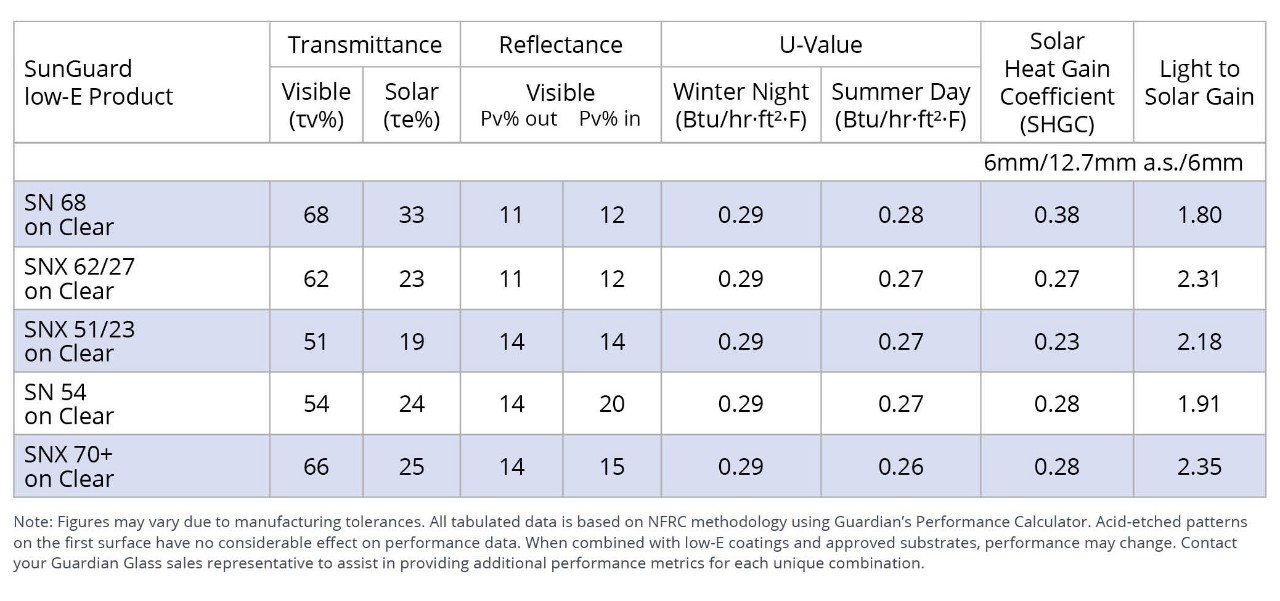

- Five SunGuard low-E coatings: SN 68, SNX 62/27, SNX 51/23, SN 54 and SNX 70+
- Four substrates: Guardian UltraClear™ low-iron glass, CrystalGray™ tinted glass, gray and standard clear glass
- 102″ x 130″, 102″ x 144″ and 102″ x 204″
- Thickness: 6mm, 8mm and 10mm
Product information
- No data available
- Windows
- Facades
- Curtain walls
- Doors
- Must be Heat Treated
- Surface 1 (Etched); Surface 2 (Low-E Coating)
- <102"x204" (2591x5182mm)
- No
- Bird-friendly glass
- Selective visibility
- Must be used in an Insulating Glass Unit
- Neutral
Visual Appearance
Use the Glass Visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for color and performance.
You need more information and additional mockups? Consult our Glass Visualizer Tool:
