SunGuard™ SNX 60+

SunGuard™ SNX 60+ glass delivers standout energy efficiency with a clean aesthetic for façades designed to inspire and perform virtually anywhere. With a 2.46 light to solar gain ratio – the highest in the North American SunGuard triple silver lineup – you’ll benefit from increased natural daylight with less unwanted heat gain.

See Products Download Brochure Find a Supplier Request a sample Contact us Explore Projects

Neutral look with powerful results.

SunGuard SNX 60+ low-E glass is designed for projects where aesthetics and energy efficiency go hand-in-hand – delivering superior performance and a crisp neutral appearance. This triple silver coating helps to support daylighting aspirations and stretch energy goals. Low reflectivity helps create privacy for interiors that prioritize comfort – making it a versatile choice for a wide range of commercial applications.

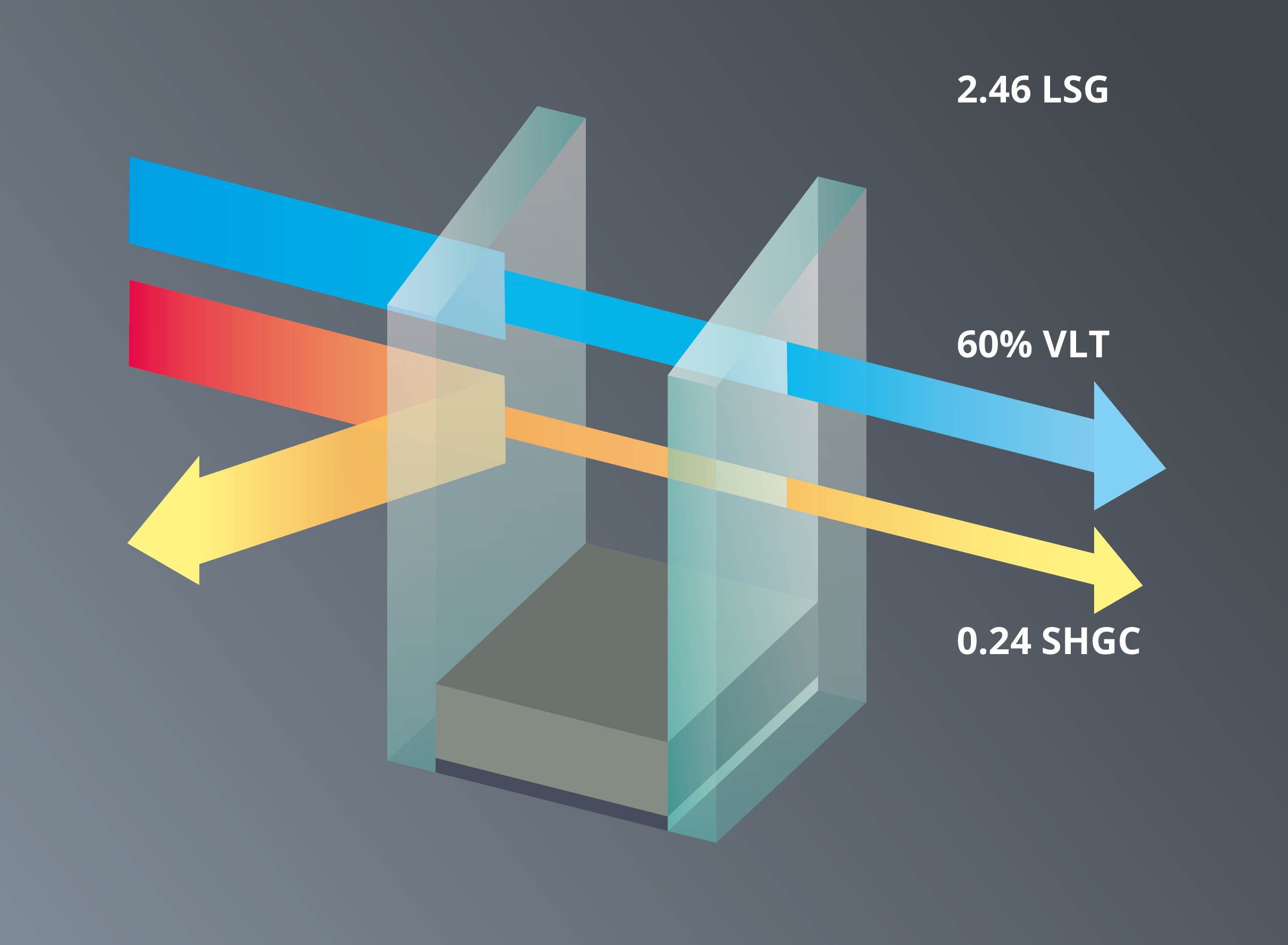

Performance with you in mind.

With a solar heat gain coefficient of 0.24 and 60% visible light transmission*, SNX 60+ glass delivers thermal performance without sacrificing natural light – for bright, comfortable interiors that meet stretch energy codes. The result is a façade as hard-working as it is beautiful – delivering on a breadth of ambitions for daylighting, occupant well-being, energy efficiency, and more.

*All performance data based on clear glass, simulated as a 1" argon-filled insulating glazing unit.

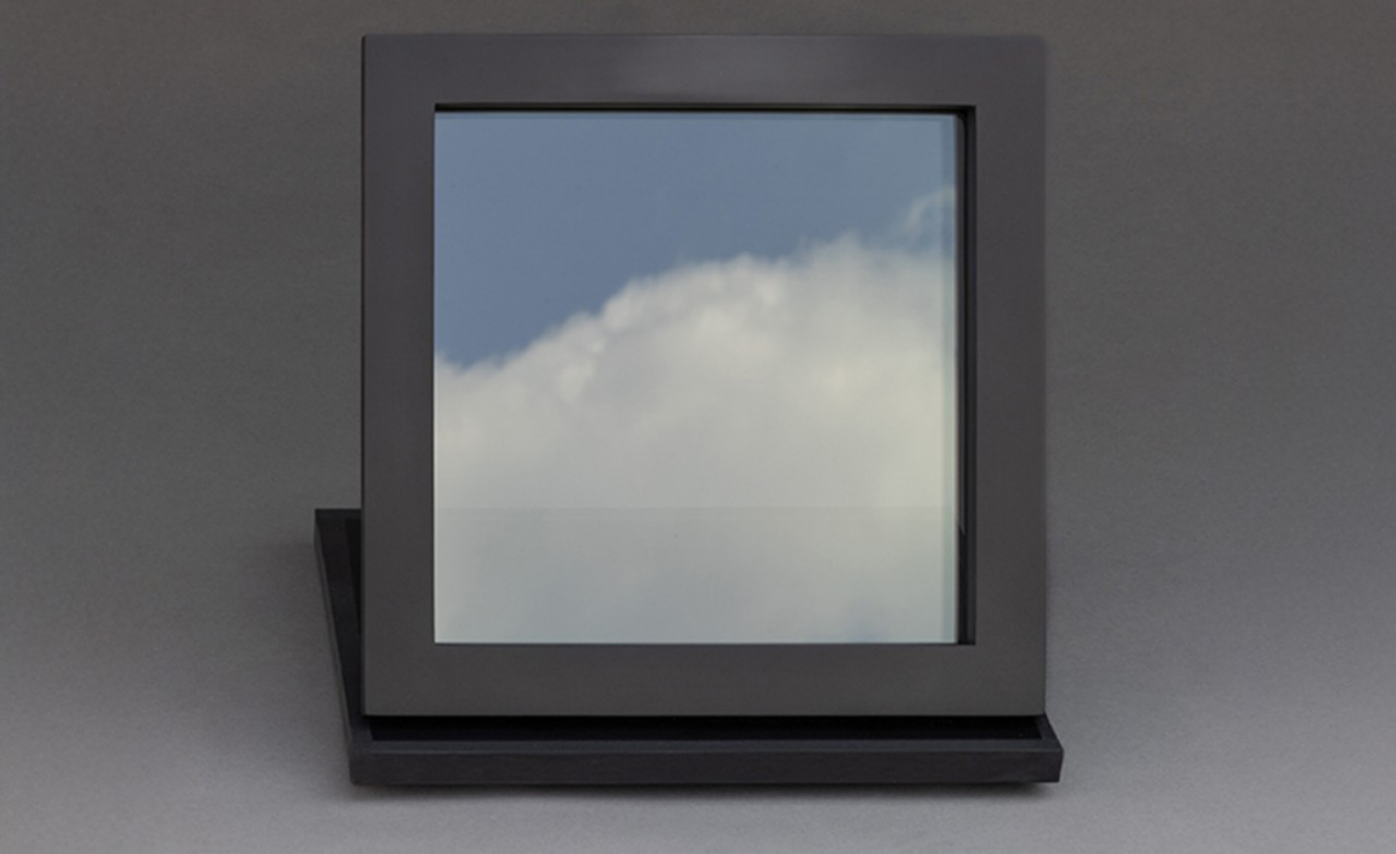

All around versatility.

SunGuard SNX 60+ glass is ideal for a wide range of design visions. Its consistent color with minimal green creates a polished look and performs beautifully in both flat and bent glass applications. From high-traffic commercial spaces to distinct architectural statements, SNX 60+ glass offers the flexibility to help meet aesthetic and performance goals without compromise.

Take it further.

Unlock even more possibilities with SunGuard SNX 60+ by pairing it with complementary solutions. SNX 60+ can be combined with interior surface coating, SunGuard IS 20.

Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

Performance Calculations

Choose a glazing

Monolithic

Not available for this product
Double

Not available for this product
Triple

Not available for this product

Monolithic

Monolithic Laminated

Double Glazed

Double Outer pane Laminated

Double Inner pane Laminated

Double Inner and Outer pane Laminated

Triple Glazed

Triple Outer pane Laminated

Triple Inner pane Laminated

Triple Inner and Outer pane Laminated

Outer Pane

Base glass *

There is only one substrate available for this product.

PVB interlayer thickness *

There is only one Interlayer available for this product.

Backing glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Glass thickness are symetrical and represent the glass to be laminated

Coating on surface 1 *

There is only one coating available

Coating on surface 2 *

There is only one coating available

Coating on surface 3 *

There is only one coating available

Coating on surface 4 *

There is only one coating available

Middle Pane

Base glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Coating on surface 3 * Coating on surface 5 *

There is only one coating available

Coating on surface 4 * Coating on surface 6 *

There is only one coating available

Inner Pane

Base glass *

There is only one substrate available for this product.

PVB interlayer thickness *

There is only one Interlayer available for this product.

Backing glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Glass thickness are symetrical and represent the glass to be laminated

Coating on surface 5 * Coating on surface 3 * Coating on surface 7 *

There is only one coating available

Coating on surface 6 * Coating on surface 4 * Coating on surface 8 *

There is only one coating available

Coating on surface 7 * Coating on surface 5 * Coating on surface 9 *

There is only one coating available

Coating on surface 8 * Coating on surface 6 * Coating on surface 10 *

There is only one coating available

Choose your calculation format

Standardization *

There is only one calculation standard available

Unit Display *

There is only one unit available for this calculation standard

Results

Calculated Values are in accordance with

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Generate specifications

Generate BIM Objects

Launch another simulation

Need further technical support? Get in contact

There is something wrong with your selection

Performance Data is not currently available for this glass make-up, please launch a new simulation or go to Glass Analytics to configure performance data for your required glass make-up.

Launch another simulation

Submission failed due to a error, please try again

This tool is unavailable on this device

Access our website on a bigger device to be able to use our comparison tool.

SunGuard™ SNX 60+ substrate options

A wide range of thicknesses and glass substrates are available with SunGuard SNX 60+.
This includes a standard sheet size of 130" x 204" and a super jumbo option of 130" x 240".

SunGuard® SNX 60+

SNX 60+ on UltraClear

- 62% Visible Light Transmittance
- 0.24 Solar Heat Gain Coefficient
- 2.57 Light to Solar Gain
- Neutral aesthetic

Add to compare

SunGuard® SNX 60+

SNX 60+ on CrystalClear

- 61% Visible Light Transmittance
- 0.24 Solar Heat Gain Coefficient
- 2.53 Light to Solar Gain
- Neutral aesthetic

Add to compare

SunGuard® SNX 60+

SNX 60+ on Clear

- 60% Visible Light Transmittance
- 0.24 Solar Heat Gain Coefficient
- 2.46 Light to Solar Gain
- Neutral aesthetic

Add to compare

SunGuard® SNX 60+

SNX 60+ on CrystalGray

- 43% Visible Light Transmittance
- 0.20 Solar Heat Gain Coefficient
- 2.14 Light to Solar Gain
- Neutral aesthetic

Add to compare

SunGuard® SNX 60+

SNX 60+ on Gray

- 30% Visible Light Transmittance
- 0.16 Solar Heat Gain Coefficient
- 1.89 Light to Solar Gain
- Neutral aesthetic

Add to compare

SunGuard® SNX 60+

SNX 60+ on Green

- 50% Visible Light Transmittance
- 0.22 Solar Heat Gain Coefficient
- 2.27 Light to Solar Gain
- Made to order

Add to compare

Need more support?

Whether you’re drawing skyscrapers, remodeling homes or creating museum cases, our team of glass experts is ready to help you find the right glass for your project.
